HSS Brutal

“AEV Brutal…”
(all project artwork by: BDL Works)

My Mopar Jeep’s supplier

Build Specs:

AEV Brute Kit
AEV Highline Kit
AEV rear corner bed guards
AEV cab corner guards
AEV Tummy Tuck
AEV Big Brake kit – last set ever sold

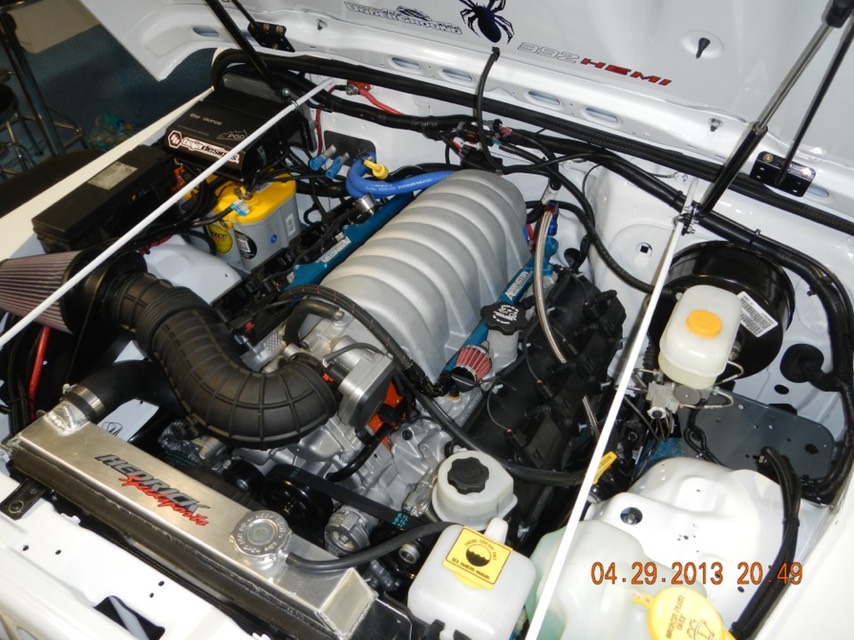

Engine: 6.4L Arrington Stroker HEMI – 525+ HP
Transmission: Mopar 545RFE – tuned
TeraFlex TeraLow 4:1 crawler T-case
GenRight Crawler Extreme Gas Tank, w/ full skid plate
o Lift: Rock Krawler 3.5” – Custom all aluminum upper and lower control arms and HD Krawler joints on all arms.
o Shocks: KING Racing Performance series w/ remote reservoir
o Air Bumps: KING Racing Air Bump - front
o Currie heavy duty tie rod and drag link system
o Currie/G2 Dana 44 axle front, W/ ARB locker & ARB diff cover
o Currie/G2 Dana 44 axle rear, W/ARB locker & ARB diff cover
o All braided SS brake lines
Tires: 35” BFGoodrich KM2’a (5)
Wheels: Weld Racing bead locks (5)
Front bumper: Mopar Rock Crawler
o Winch Warn 9.5Ti
o W/ Synthetic line
o ProLink
Rear Winch: Warn 8000VR, W/ Synthetic line
Bed mounted Pre-Runner spare tire mount – quick release removable
(2) Bed Mounted Baja Bins by Swag Offroad
Bed mounted Power Tank CO2 air system
ARB onboard air system

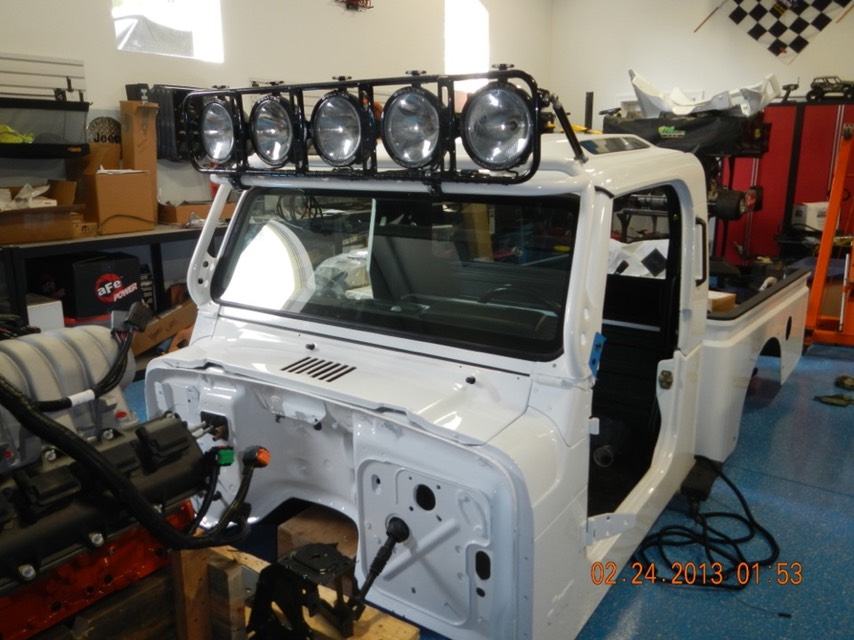

o Top: (5) Baja Designs HID 8” LaPaz on custom KMA fabricated light bar
o Front: (2) Baja Design HID 6” PreRunners, interchangeable lenses
o Headlights: Delta Quad’s
o sPOD Electrical Management System

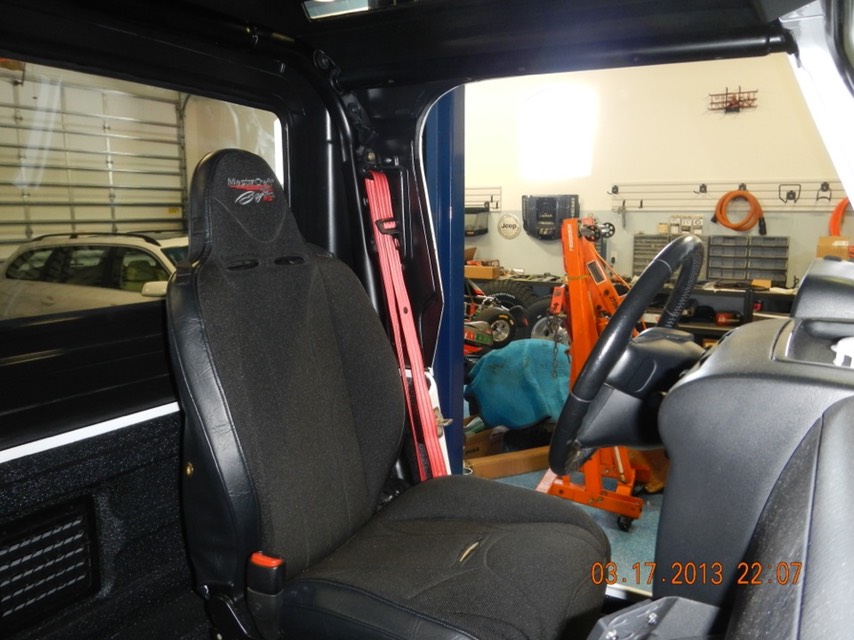

o Mastercraft Baja RS seats
o Rock Hard roll cage
o Kenwood stereo, Bluetooth ready
o Polk Audio speakers
o Alpine Marine amp 400W
o Brand new OEM door panels
o Brand new Bed Rub carpet kit
o Full Extreme Line X’d interior & bed
o New OEM Jeep “Tomb Raider” seat belts
o Digital ScanGauge II OBII Monitor

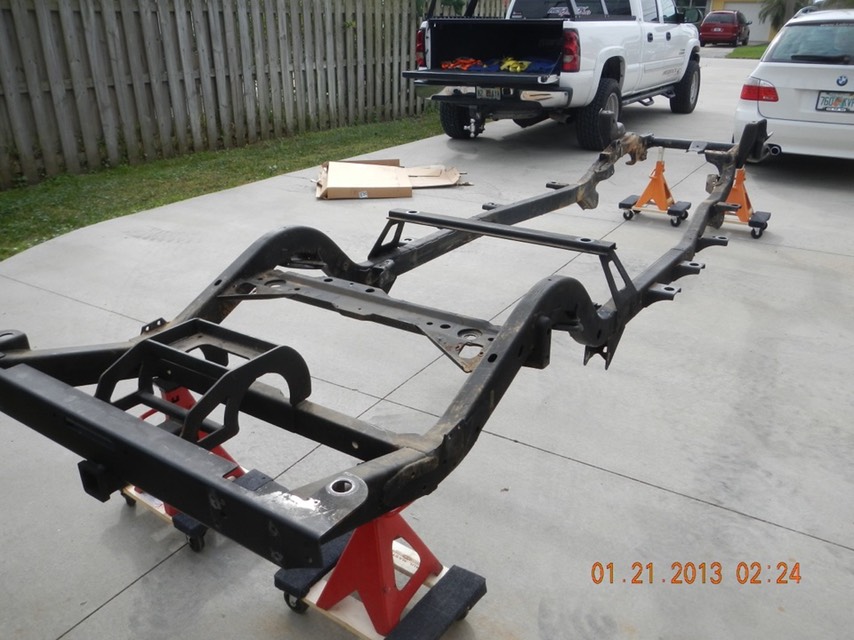

This AEV is one of the if not THE most advanced Brute’s ever built. This Brute was built by me personally and it has had no expense spared on it at all. This Brute is has literally been taken completely apart down to bare frame. The frame had extensive modification done to it to strengthen the frame that all TJ Brute builds need to prevent the “limo bounce” or oscillating frame movements when driven. The frame was then bead blasted and powder coated black. The body was painted 2013 Dodge Viper white and the underneath was painted a semi gloss black. The underside is just as clean and shinning as the top. The combination of the RK suspension, KING shocks and Currie HD steering have prove to be a great combination on this Brute build and of course the AEV Big Brake kit brings it all back to a firm controlled stop. Custom BFG KM2 full-length tire tread graphics, actual size of real tire.

Contact: Ben Hedrick
Ph: 352-516-1026

Tech help: Jeff Mansell (Special THANKS..!)

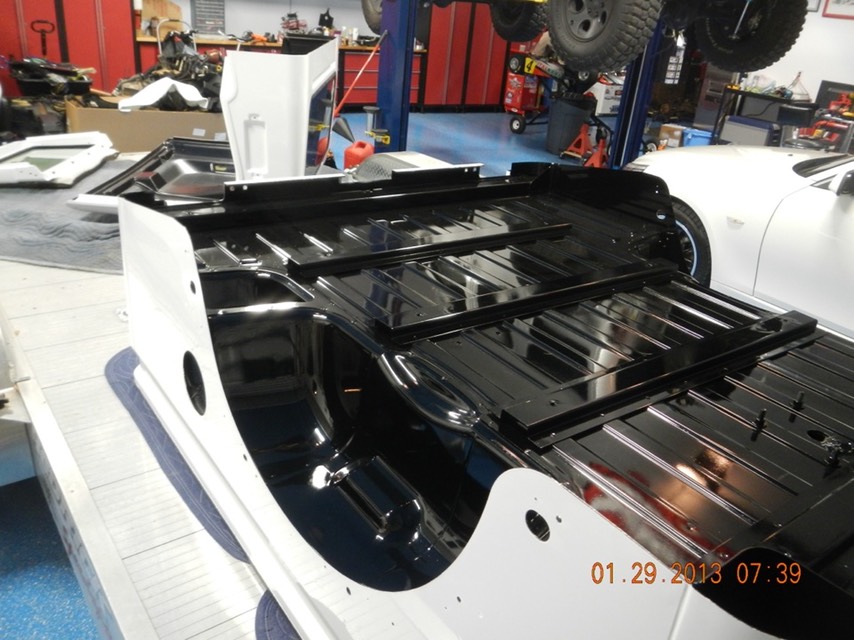

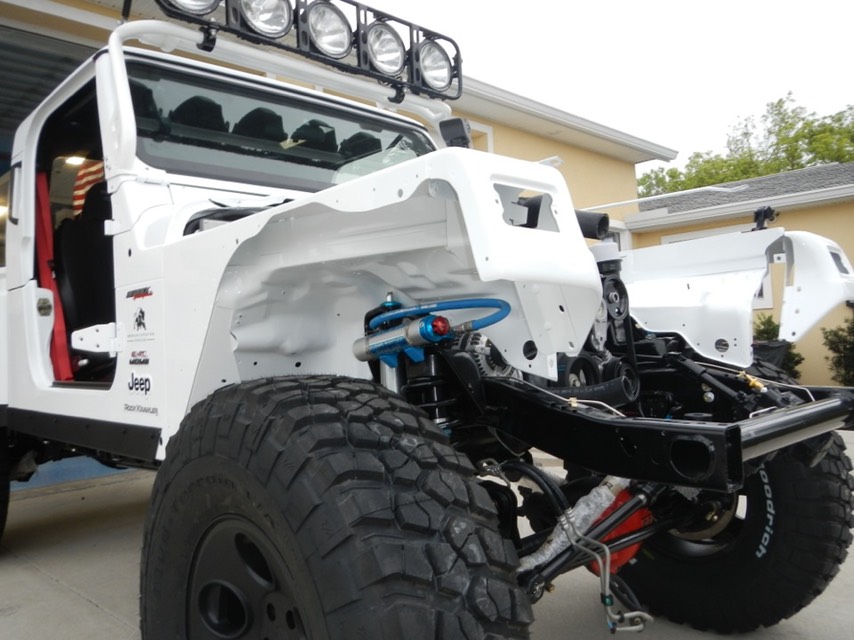

The Building of BRUTAL…

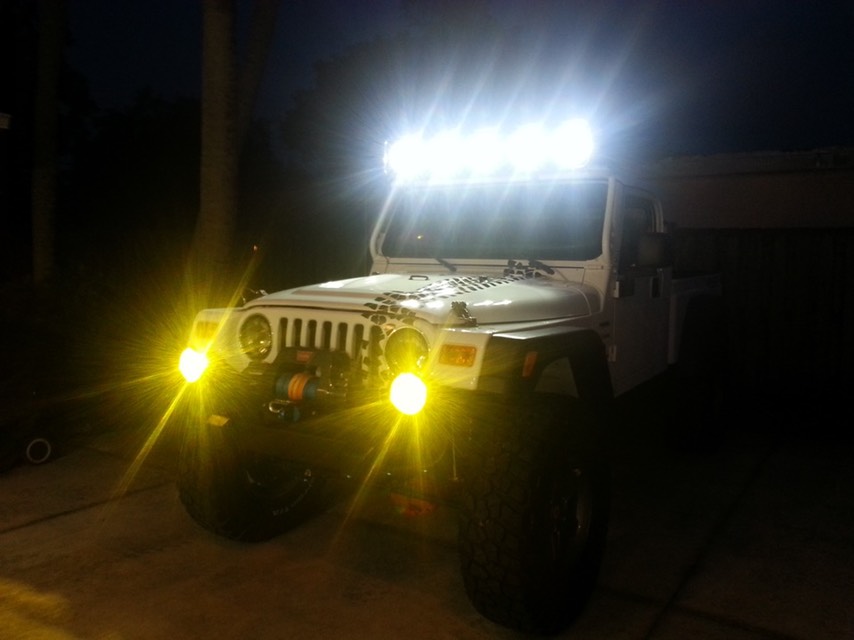

Let there be light… and so Baja Design’s brought light… HID light’s..!

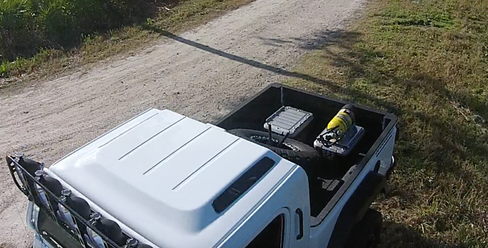

Brutal Spare and Power Tank


Poser driveway shot


Front Right




Back under...


Sold…. :(

I’m going to miss this one…!
